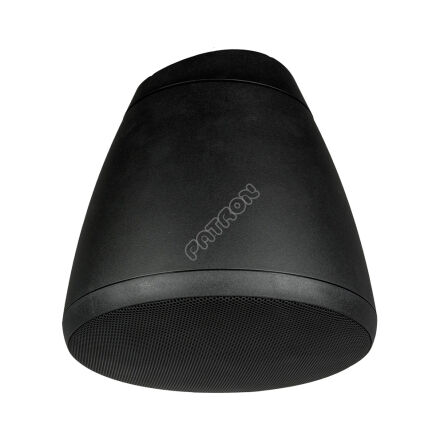

SoundTube RS42-EZ-4″ Open-Ceiling Speaker

One 4 inch (102 mm) coaxial driver with BroadBeam Ring™ technology for consistently smooth high frequency directivity. Includes hanging hardware with galvanized steel cables and hanging bracket for fast, easy and secure installation. Unit may be hung or mounted direct-to-conduit via locking cover plate. Enclosure constructed of injection molded ABS with glass fiber reinforcement for lasting durability in indoor or outdoor applications. 16 ohm impedance for easy daisy chaining in low voltage systems. Aluminum grille with protective powder coated finish. Built-in thermal fuse. Ceramic input terminal accepts up to 10 gauge plenum rated signal wire and includes thermal fuse. Suitable for use in voice alarm applications subject to EU regulations EN60849 and BS5839-8. Unit ships in eco-friendly, recyclable packaging. UL 1480 UEAY and UL 2239 listed. Included accessories: hanging hardware, weather plug, cover plate, AC-RSEZ-HH-10, and AC-RSEZ-HH-10.

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Produkt w magazynie dystrybucyjnym
  • Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
  • tel. 56 657 57 65
  • tel. 500 227 464
  • Nominal Impedance 16 ohm
    Impedance (min) 16.0 ohm
    Sensitivity dB @ 2.83V/1M 82.4dB
    Sensitivity dB @ 1W/1M (2) 85.4dB
    Frequency Response (± 3 dB) 140 Hz - 22 kHz
    Frequency Response (±10 dB) 100 Hz – 22 kHz
    Max. Program Power 40W
    Max. Continuous Power RMS 20W
    Max. Power SPL @ 1 M 100.0dB
    Max. Power SPL @ 4M 87.0dB
    Directivity Factor (Q) (Averaged 100Hz - 10kHz, @ 2kHz) 2.8 (Average 100 Hz - 10 kHz) 5.5 (2kHz)
    Directivity Index (DI) dB (Averaged 100Hz - 10kHz, @ 2kHz) 4.4dB (Average 100 Hz - 10 kHz) 7.4dB (2 kHz)
    Tap Selector 6 Position rotary switch with transformer bypass
    70.7 Volt Transformer Taps 20w / 100.0dB
    100 Volt Transformer Taps (dB) 20w / 100.0dB
    25 Volt Transformer Taps (dB) 2.5w / 91.0dB
    Transformer Options 25 / 70.7 / 100 Volt option with a 16 Ohm direct
    Transducer - Low Frequency Driver 0.75" (19mm) Silk dome w/ BroadBeam Ring™
    Transducer - High Frequency Driver 4" Polypropylene Cone with Butyl Rubber Surround
    Network Type: Low Pass 12dB per octave, 2nd order
    Network Type: High Pass 6dB per octave, 1st order
    Angle 100
    Coverage Angle (-6 dB @ 2 kHz) 100
    Colors Black or white
    Inputs 4 position ceramic terminal connector
    Height (SM = Height) 199.6 mm / 7.9 in
    Diameter (SM = Width) 189.5 mm / 7.5 in
    Carton length 241.3 mm / 9.5 in
    Weight 1.4 kg / 3.1 lb
    Shipping Weight 1.8 kg / 4.0 lb
    Accessories Optional Beam Clamp (AC-BC-1), Split Loom Tubing (AC-SLT-10), Hanging Kit (AC-RSEZ-HH-10), Hanging Kit (AC-RSEZ-HH-20), 50′ Hanging Kit (AC-RSEZ-HH-50), Forged Eyebolt (AC-FE1), Snap Link (AC-SL-1)
    Packaging 1 per box
    Regulatory - UL Approved UL1480A
    Regulatory - CE Approved
    Regulatory - IP not planned
    Regulatory - EN54 approved
