Audac DW5066 W / B - salony w Katowicach i Toruniu zapraszają - profesjonalne systemy audiowizualne

**** Autoryzowany dealer produktów AUDAC ****

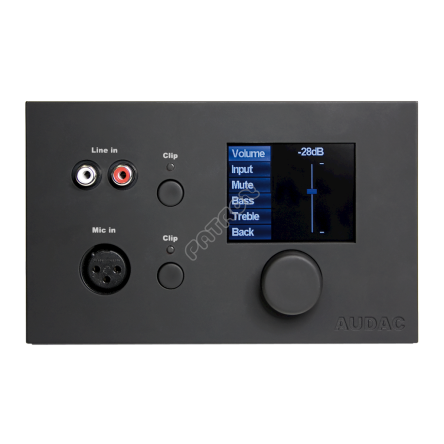

Audac DW5066  - panel sterujący z LCD, do M2 i R2



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Produkt w magazynie specjalistycznym
  • Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
  • tel. 56 657 57 65
  • tel. 500 227 464

  • wejście liniowe 2x RCA,
  • wejście symetryczne XLR,
  • załączane zasilanie phantom 15V (software enabling),
  • przejrzysty wyświetlacz LCD 2,5 ,
  • wymiary: 153 x 94 x 45mm,



The DW5066 is an all-in-one wall panel controller for multi-zone digital audio matrix systems and multi-media digital audio mixers. It offers various control functions such as audio source selection whereby the routing can be changed or specific mixing presets ('scenes' - only for M2) can be triggered. The control shall be done using the versatile rotatable push dial whereby other settings such as volume, tone control, phantom power, muting, ... also can be made. A local line and microphone level input allows the connection of additional input units to be patched with the matrix / mixer while one of them can also be converted to a local line output. The additional inputs allow connection of a CD-player, MP3 player or any other audio source as local input while a microphone can be connected for making announcements. Both line and microphone audio input can be mixed locally using two push-lock potentiometers and 15V phantom power can be enabled to the microphone input for powering condenser microphones. The audio output function can be very useful in applications where a local audio output is required carrying the same audio signal as one of the direct outputs. This can be very useful for monitoring, recording or other system expansion purposes. A 2.5" graphical LCD display ensures a user-friendly experience for controlling the system and the audio connections are performed using XLR (microphone) and stereo RCA (line) connectors.


Specyfikacja:

Control RS-485
Digital audio S/PDIF
Phantom Power 15 V DC (software enabling)
Cabling UTP CAT 6 (Up to 300 meter)
Connectors 8-pin Euro Terminal Block
Display Type 2.5” Graphical Full colour
Inputs Balanced Stereo Type 1 x Stereo Balanced Line
    Connector RCA
  Balanced Microphone Type 1 x Balanced Microphone
    Connector XLR female
Product features
Dimensions 153 x 94 x 45 mm (W x H x D)
Built-in depth 37 mm
Weight 0.210 kg
Construction ABS
Colours Black (RAL9005) (DW5066/B)
  White (RAL9010) (DW5066/W)



Urządzenie objęte gwarancją, realizowaną w systemie door-to-door przez autoryzowany centralny serwis
