WorkPro PA 60 USB/R - Wzmacniacz miksujący 100 V – moc: 60 W RMS – odtwarzacz MP3 – rejestrator audio – wejście USB – 4 wej. Mic + 4 line + 2 aux

Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

• audiowizualnych
• Digital Signage
• wideokonferencyjnych i telekonferencyjnych
• sterowania (integracyjnych).

• Produkt w magazynie dystrybucyjnym
• Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
• tel. 56 657 57 65
• tel. 500 227 464

Mixing amplifiers with audio player/recorder

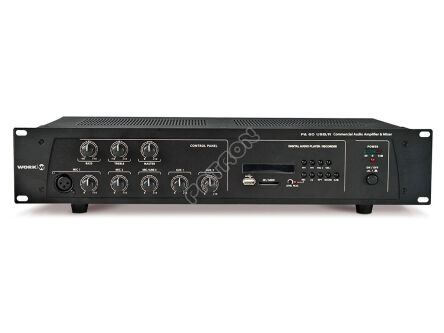

PA 60 USB/R is a 60 W power amplifier that features a 5 input mixer and a solid state audio player/recorder (USB/SD) compatible with standard formats (MP3, WMA). It is possible to record voice messages. The device supports USB and SD storage devices with up to 32 GB memory.

Regarding audio control, the mixer includes all the functions required for full control of the 5 signal inputs: independent volume control, master control of level, bass and treble tone. The mixer also has a pre-out to send mixed signal to an external amplified system or to connect external devices like equalizers and processors.

PA 60 USB/R is suitable for low impedance speakers (8 ohm) and high impedance loads (25/70/100 V). In addition, for maximum safety in the whole installation, it includes a Chime On/Off switch and a Telephone/Emergency connexion for emergency announcements. DC 24 V terminals are also available for emergency backup.

.

Installed sound power amplifier and 5 input mixer.
Solid state audio player/recorder (USB/SD) with standard formats (MP3, WMA).
Supports storage devices of up to 32 GB.
2 Aux inputs + 3 Mic inputs.
Mic 1 input with priority.
Mixer with independent control of volume.
Master control and treble/bass tone.
Pre-out function.
Suitable for low impedance speakers (8 ohm) and high impedance loads (25/70/100 V).
Chime On/Off switch.
Telephone/Emergency connexion for paging and emergency announcements.
Terminals for emergency supply (DC 24 V).
2U rack enclosure.

Specyfikacja:

• Output Power (RMS): 60 W.

• Output Power (Peak): 90 W.

• Audio inputs: 3 MIC, 1 LINE, 2 AUX level.

• USB/SD interface: MP3 / WMA formats.

• MIC inputs (Impedance/Sensitivity): 250 ohm / 1 mV / -57.78 dBu.

• LINE (Impedance/Sensitivity): 47 kohm / 200 mV / -11.76 dBu.

• AUX (Impedance/Sensitivity): 47 kohm / 200 mV / -11.76 dBu.

• Power IN (Impedance/Sensitivity): 47 kohm / 1 V / 2.21 dBu.

• Low impedance: 8 ohm.

• High impedance Line: 25 / 70 / 100 V.

• Tape: 4k7 ohm / 350 mV.

• Pre-out: 600 ohm / 1V.

• Frequency Response: 50 Hz - 20 kHz +/- 3dB.

• EQ Control:

• Bass:(+/- 10 dB)/ 31 Hz - 180 Hz / Centre freq. 80 Hz.

• Treble:(+/- 10 dB)/ 2k5 Hz - 20 kHz / Centre freq. 10 kHz.

• S/N Ratio: >75 dB (Line), >60 dB (MIC).

• THD: Less than 1% at 1kHz, rated power.

• Chime: 2 tone chime (´Ding-dong´ pre-announcement chime).

• Priority: Tel./Emer. - MIC1.

• Main supply AC power: 115 / 230V - 50 / 60 Hz.

• Main supply DC power: 24 V - 8 A.

• Consumption: 170 W.

• Dimensions (WxHxD): 483 x 88 x 260 mm.

• Weight: 8 kg.
