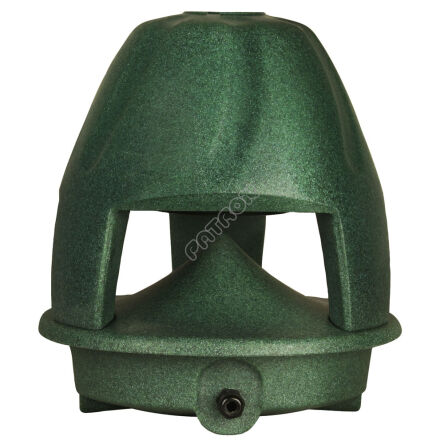

SoundTube XT 550 GN -XT550

Patented BroadBeam® waveguide technology provides smooth 360º horizontal off-axis coverage and reduces overall system costs. One 5.25 in weatherproof polypropylene woofer with butyl rubber surround and one 1″ aluminum dome tweeter with integrated horn & mounting bracket. UV-, scratch-, chlorine- and weather- resistant with professional-grade components for long-lasting performance and durability. Patented, durable and weather sealed Zero Reflection™ enclosure with optional port vent for added frequency response. Weather-proof 5-position tap switch for 25-, 70.7-, 100 Volt applications with transformer bypass position. 32 Watt transformer included. Liquid-tight compression fittings for water-tight protection. Multiple wire inlet locations for fast and easy daisy chaining. Stainless steel fasteners, stainless steel & powder-coated grille. UL 1480 (UEAY) listed.



Zapraszamy do współpracy w zakresie projektowania, sprzedaży i montażu profesjonalnych systemów:

  • audiowizualnych
  • Digital Signage
  • wideokonferencyjnych i telekonferencyjnych
  • sterowania (integracyjnych).



  • Produkt w magazynie dystrybucyjnym
  • Zadzwoń do nas w celu ustalenia ceny specjalnej oraz dostępności
  • tel. 56 657 57 65
  • tel. 500 227 464
  • Nominal Impedance 4 Ohms
    Impedance (min) 4 Ohms
    Sensitivity dB @ 2.83V/1M 86.0 dB
    Sensitivity dB @ 1W/1M (2) 83.0 dB
    Frequency Response (± 3 dB) 61 Hz – 9.5 kHz port open (101 Hz – 12 kHz port closed)
    Frequency Response (±10 dB) 49 Hz – 22 kHz port open (62 Hz – 22 kHz port closed)
    Max. Program Power 120 Watts
    Max. Continuous Power RMS 60 Watts
    Max. Power SPL @ 1 M 101 dB
    Tap Selector 5 Position rotary switch with transformer bypass
    70.7 Volt Transformer Taps 32W / 98.0 dB
    100 Volt Transformer Taps (dB) 32W / 98.0 dB
    25 Volt Transformer Taps (dB) 4W / 89.0 dB
    Transformer Options 25 / 70.7 / 100 Volt option with a 4 Ohm direct
    Transducer - Low Frequency Driver 5.25" Polypropylene Cone w/ Butyl Rubber Surround
    Transducer - High Frequency Driver 1" Convex Aluminum Tweeter
    Network Type: Low Pass 6dB per octave, 1st order
    Network Type: High Pass 6dB per octave, 1st order
    Coverage Angle (-6 dB @ 2 kHz) 360 horizontal
    40 vertical
    Colors Granite green or sandstone
    Connections 18-Gauge wire lead
    Inputs 18 gauge wire lead
    Height (SM = Height) 394 mm / 15.51 in
    Diameter (SM = Width) 358.1 mm / 14.1 in
    Weight 5.9 kG / 13.0 lbs
    Shipping Weight 8.6 kG / 19.0 lbs
    Packaging One per box
    Regulatory - UL 1480A Approved
    Regulatory - CE approved
    Regulatory - IP ip55_approved
